Name: Air Vent Gable Mounted Power Fan
Brand: Air Vent
Price: 206.2000 USD
Availability: InStock
Rating: 5 (2 reviews)

Air Vent Gable Mounted Power Fan Helpful 1

Click Here For a List of all Air Vent Products

Choose Your Air Vent Vent Type

Choose Your Size

Humidistat/Thermostat 1620 CFM

Manufacturer Part Number: APGH

In Stock Now!

Price: $206.20

+ Free Shipping

Estimated Ship Date: Thu Jan 02 - Mon Jan 06

Quantity:

Add to Cart

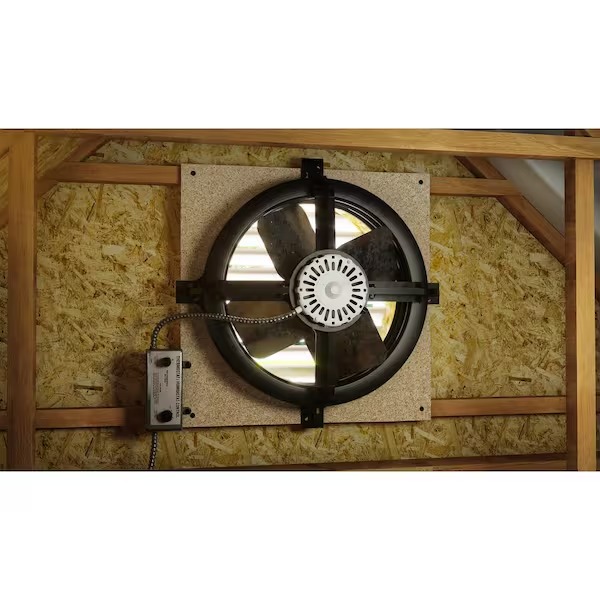

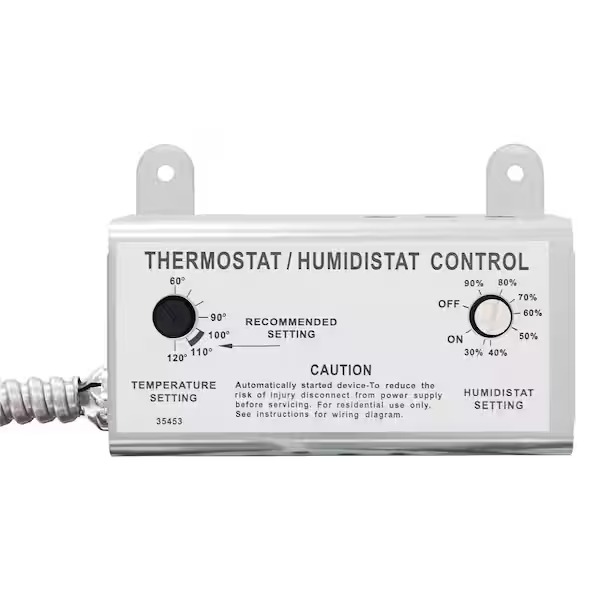

The Air Vent Gable Mounted Power Fan is installed in the gable end of the house. It uses a thermostat to help prevent heat buildup and a humidistat (available in the 1620 CFM model only) to fight moisture buildup inside the attic. This Power Fan by Air Vent operates 30% more quietly than comparable units and with 35% greater efficiency. What's more, since many homes already feature a gable or gable vent, it may not be necessary to cut a hole to install the gable-mount ventilator.

The Air Vent Gable Mounted Power Fan is available in Humidistat/Thermostat 1620 CFM package that covers attics up to 2300 square feet, as well as Thermostat 1320 CFM package that covers attics up to 1900 square feet.

Patented rings instead of solid-steel housing, which pulls more air

Automatic shutter available in white, but can be painted to coordinate with home's exterior

One power attic ventilator is usually sufficient, unless it's a very large attic

Roof-mount power vents are ideal for hip roofs

Feature a preset adjustable thermostat for maximum homeowner convenience

Gable-mounted power vents are an excellent option for tile roof ventilation

For proper attic ventilation, the Home Ventilation Institute recommends a system that provides at least 10 air exchanges an hour. To determine the fan capacity needed to provide this minimum airflow, use the following formula: attic square feet x 0.7 = CFM (cubic feet of air moved per minute)

Power vents are rated by CFM. Look for a power vent that provides at least the minimum CFM requirement. Remember, the higher the CFM the more air exchanges per hour

Note: for roofs 7/12 or higher, you may want to add 20% more CFM capacity to handle the larger volume of attic space; 30% more for roofs 11/12 and higher

Adequate soffit venting must be installed for best performance

If using gable vents, gable vents must be installed on the down-wind end of the home

Spec Drawing

Gable Mounted Power Fan Installation
